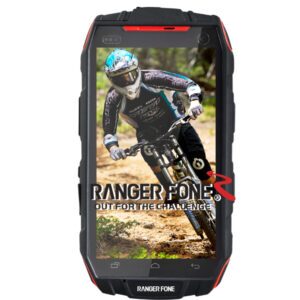

Rangerfone S17 Specification


General Specification
ModelINFINITY
Communication ModeGSM / WCDMA (TD-SCDMA compatible)
Frequency3G:WCDMA 850/1900/2100MHz; 2G:GSM 850/900/1800/1900MHz.
CPUMT6582 quad core 1.3G
OSAndroid 4.4
TypeBar
ColorBlack, Red
Screen Size5.0"
Screen Resolution720*1280
CameraF: 2MP, B: 8MP
Talking Time10hrs
Weight324g
Dimension158*83*20mm
Basic Function
Wireless ChargingSupport
SIMDual Micro Sim
SMSSMS, MMS
InputTouch
ButtonsVolume, On/Off, Fn, PTT, Reset
Bluetoothv4.0
USBSupport
WAPSupport
WiFiSupport
OTGSupport
PositioningSupport GPS (Beidou and Glonass optional)
More FunctionsAlarm, Calendar, Calculator, Schedule
MediaMP3, MP4, ADPCM, AVI
FM RadioSupport
TorchSupport
I/O5pin MICRO USB

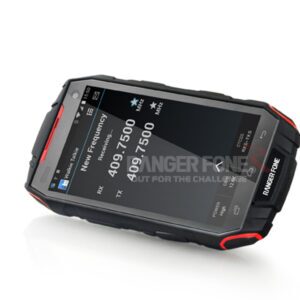

Two Way Radio
Gnr. SpecsFrequency rangeUHF:400MHz-470MHz
Capacity Region2
Channel Spacing6.25 kHz / 12.5 kHz
RadioDMR/dPMR/Analog
Working TimeAnalog: >10 hrs
Digital: >12 hrs
Frequency Stability≤1.5 ppm
RECEIVERAnalog Sensibility0.32μV(12dB SINAD)
Digital Sensibility0.32μV/BER 1%
0.25μV/BER 5%
Adjacent Channel Selectivity
TIA-603 ETSI
57dB @ 6.25KHz
60dB @ 12.5KHz
Spurious Rejection
TIA-603 ETSI
60dB
Intermodulation
TIA-603 ETSI
55dB
Hum and Noise40dB @ 12.5KHz
45dB @ 25KHz
Rated Audio0.5W
Audio Distortion @ Rated Audio≤5%
Audio Response+1~-3dB
Spurious Emission<-57dBm
TRANSMITTEROutput PowerH: 2W
Conducted / Radiated Emission-36dBm <1GHz
-30dBm >1GHz
Digital Modulation Limited±1050Hz
Analog Modulation Limited±2.5KHz @ 12.5KHz
Adjacent Channel Power57dB @ 6.25KHz
60dB @ 12.5KHz
67dB @ 25KHz
Audio Response+1 ~ -3dB
Audio Distortion≤5%
Digital Vocoder TypeAMBE++
Tsinghua
Digital ProtocolETSI-TS102 361-1,-2,-3
Multi-Sensor
Magnetic SensorSupport
Air Pressure SensorSupport
Range SensorSupport
G-SENSORSupport
Light SensorSupport
RFIDCompatible
NFCNXP 13.56MHz,support ISO14443A and 15693.
GyroscopeSupport
Ruggedness
Waterproof&DustproofIP-68
OthersDrop proof, crush proof
Storage
InternalROM:16G RAM:2G
ExternalSupport MicroSD card 32G max
Accessory
Battery4000mAh Li-polymer
EarphoneYes
ChargerYes
Data CableYes
Radio AntennaYes, universal SMA port
